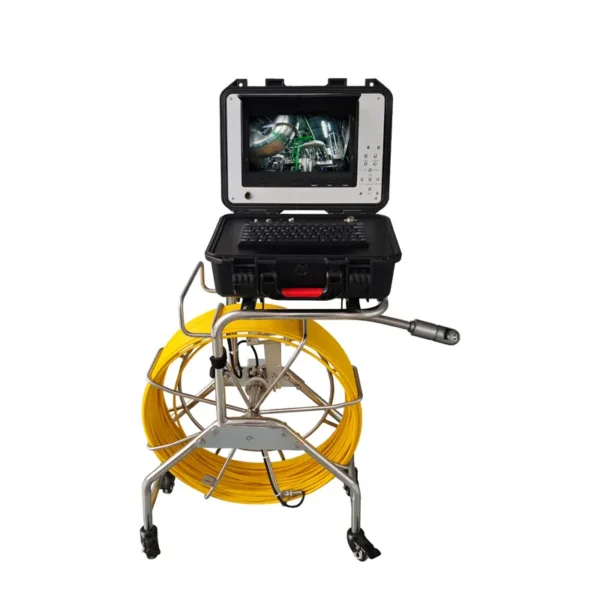

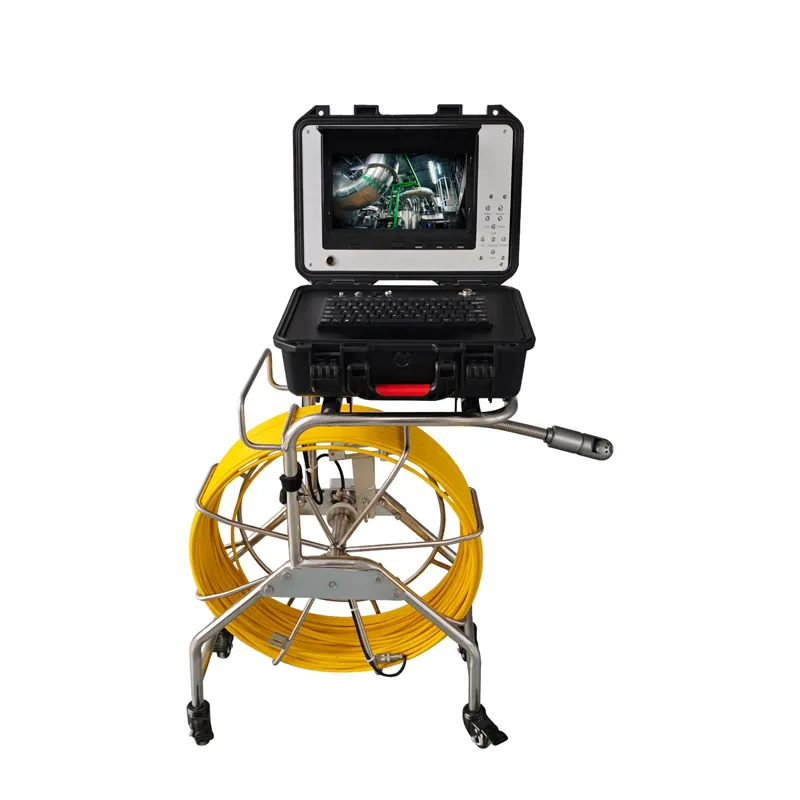

10ZYA2-Pipe Inspection Camera

10” Color HD Display, 40mm Diameter HD Camera, DVR, Photo-taking, Video-recording and Data-storing. USB Wired Keyboard and Monitor support.
Model No.: TH110-10ZYA2

10” color HD display, DVR, photo-taking, video-recording and data-storing. Hand-push cable reel, and and digital distance counters. USB wired keyboard and monitor support.

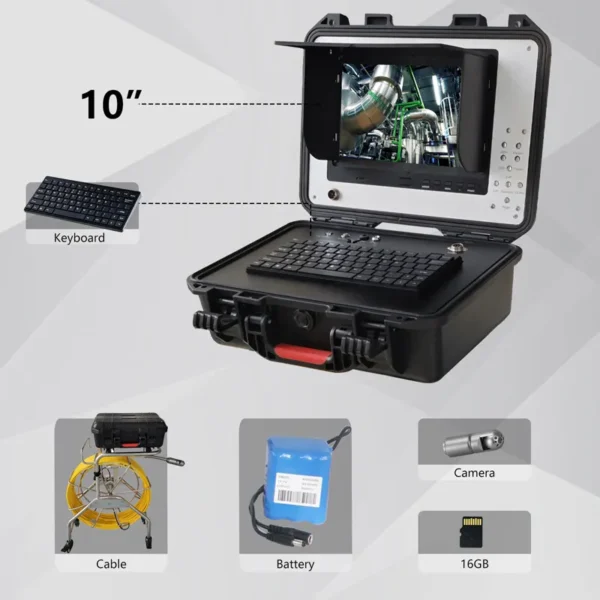

Product Overview

40mm diameter HD camera

10” color HD display

Equipped with DVR for photo-taking,

video-recording and data-storing.

Removable large cable wheel with platform,

and with digital distance counters.

Equipped with USB wired keyboard and monitor platform.

Fiberglass cable diameter 7mm, length can be customized.

Technical Parameters

Parameter	Details
Camera Dimensions	40×125mm（High Strength Oxidized Aluminum Alloy）
Camera Pixel	AHD 2 Megapixels
Waterproof Rating	IP68

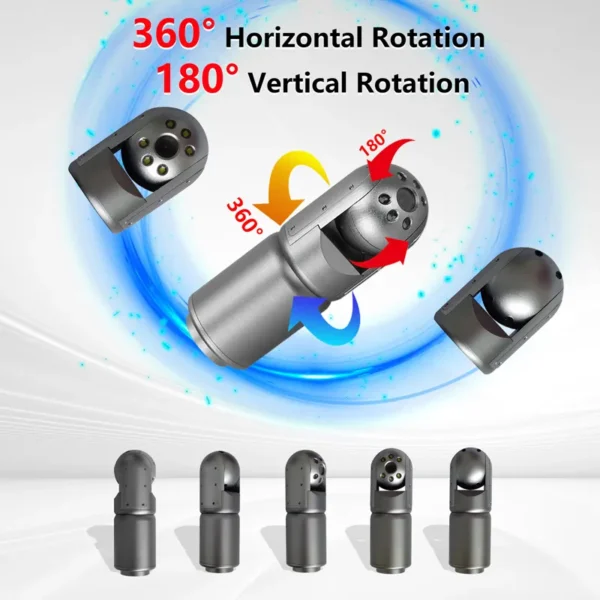

Viewing Angle	Horizontal 360° Rotation + Vertical 180° Rotation, Zoomable
LED Lights	6 High Brightness LEDs

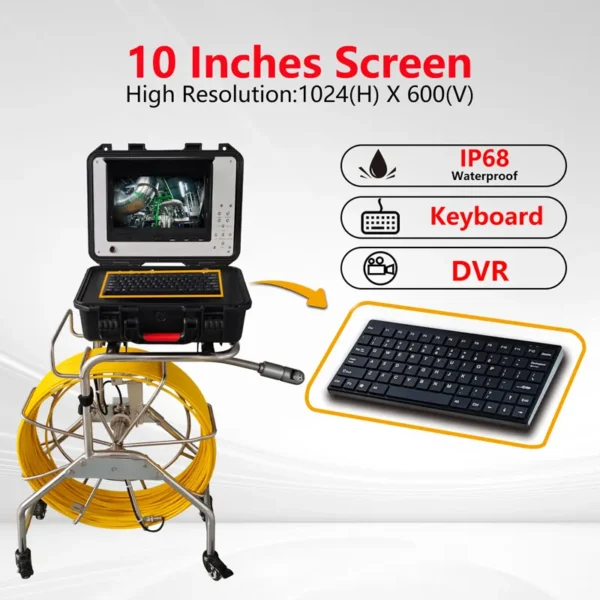

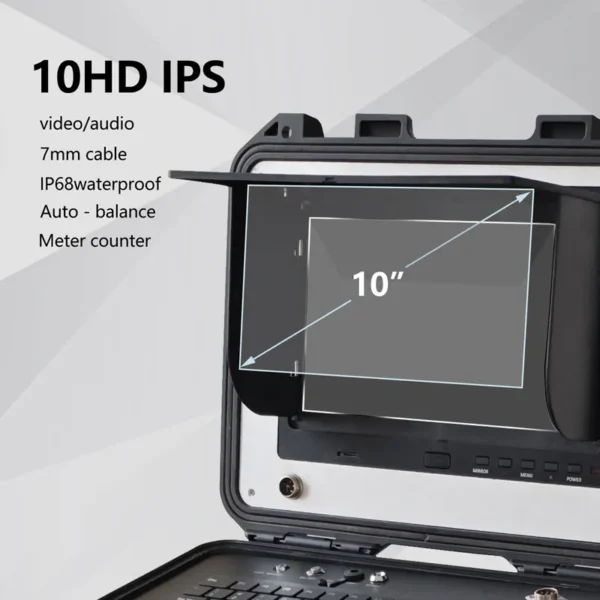

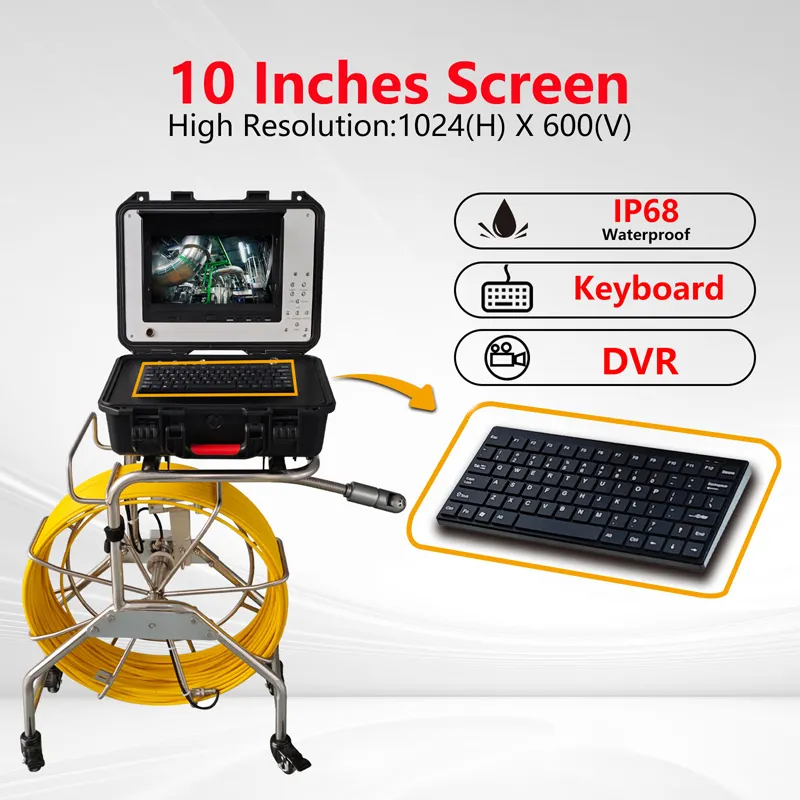

Display	10” Color HD LCD Screen
Display Resolution	1024×600
DVR System	MP4 Video Format, 1920×1080 Resolution
Storage	Standard 8G Memory Card (MAX 128G)

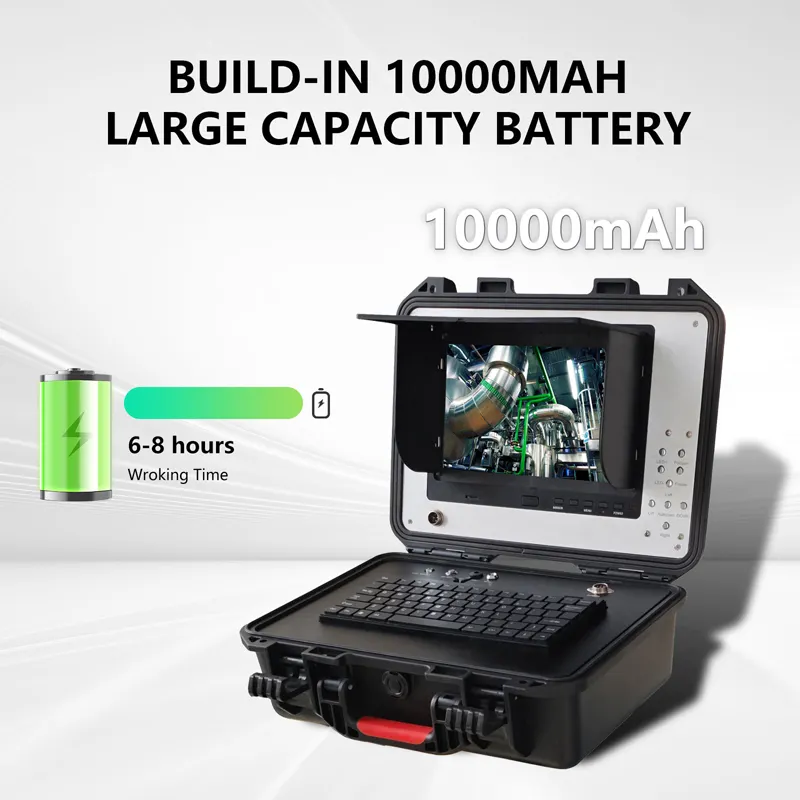

Battery	Built-in 10000mAh Lithium-ion Battery
